Portable ultrasonic flow meter UFP-20

The Portable Ultrasonic Flowmeter UFP-20, based on the same, ergonomically advanced design so popular in the UFP-10, features significant size reduction.

The result is a portable ultrasonic flowmeter that meets next-generation standards.

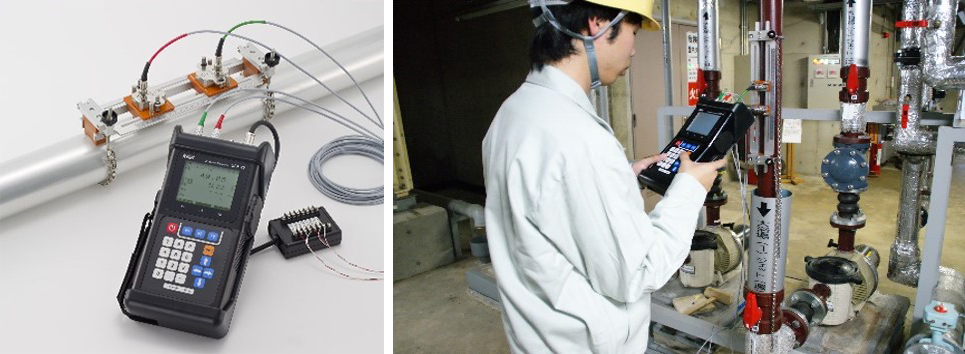

The UFP-20's single-handed portability means difficult and challenging jobs located in narrow or high places can now be performed safely and easily.

Product details

【Features】

Compact and Lightweight: Compact size that can be held with one hand.

High Precision Measurement: Adopting the ultrasonic pulse transit time difference method for high precision design.

Dual Measurement Points: Capable of simultaneously measuring two different pipelines with one unit. Also capable of dual line measurements.

Heat Quantity Measurement Function: Can be used as a portable calorimeter by connecting temperature measuring resistors (Pt-100; up to 4 points).

Body Protection Structure (IP-65): Waterproof and dustproof performance of IP-65 is maintained even during measurement.

Waveform Display Function: Visual understanding of the ultrasonic receiving wave situation, enabling quick judgment of measurement status.

Data Transfer via USB Memory: Log data (CSV) stored in the device can be transferred to a computer via USB memory.

Standard Equipped with Thickness Gauge and Sound Velocity Measurement Function: Effective for on-site measurement of pipe thickness and fluid sound velocity.

User-Friendly Operation with Dialogue Mode

【Main Specifications】

Applicable Pipe Diameter: 13A to 5000A (using 3 types of sensors)

Applicable Temperature: -20 to 120°C (small and medium-sized sensors)

Measurement Accuracy: ±1.0 to 2.0% (depending on the measurement diameter)

Battery Operating Time: 8 hours

External Dimensions: 135(W)×250(L)×68(H)mm

Weight: Approximately 1.4kg
